Product Introduction

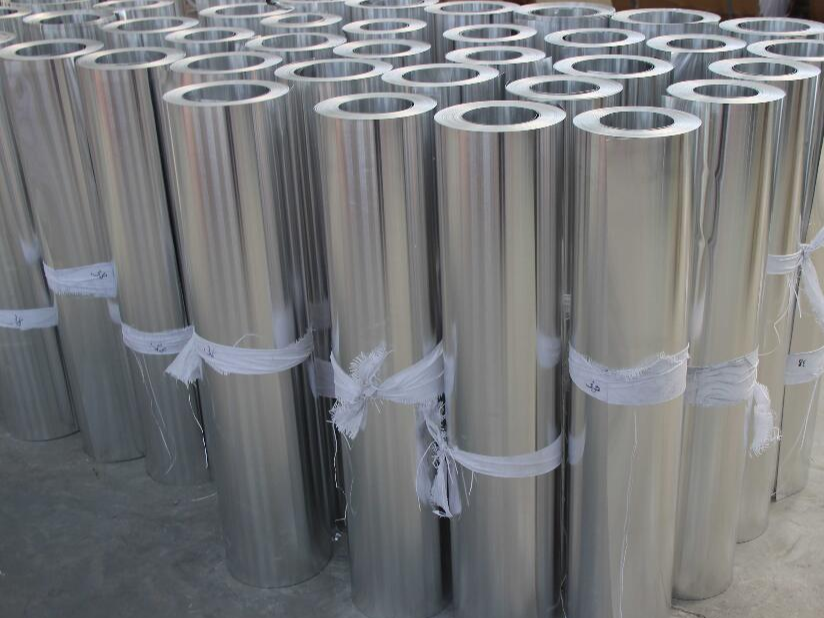

At present, we can supply 1050/1060/1100 pure aluminium roll, 3003/3105/3004 anti-rust aluminium roll, 5052 corrosion resistance aluminium roll, etc. With beautiful apperance, bright and clean. And good suitable for pipelines’ insulation covered application. It also called thermal insulation aluminium roll, heat insulation aluminium roll. The properties of these aluminum alloys provide the required strength to resist in-service abuse, but can be easily fabricated and installed. The attractive mill finish maintains its sharp appearance, a necessity for any insulation project. Aluminum’s resistance to atmospheric corrosion makes its use ideal, even in marine, chemical, industrial environments, or in industries processing food or beverages. Aluminum has an excellent resistance to corrosion which reduces cost through long service, without maintenance or painting. Aluminum jacketing is available in Mill finish, Smooth, Stucco Embossed, Corrugated & with moisture barrier consisting of polykraft.
Specification
|
Aluminium Roll Jacketing |
|||||
|
Alloy |
Temper |
Specification(mm) |
|||
|
Thickness |
Width |
Length |
Remarks |
||
|
1050 1060 1100 |
H14 |
0.3-3.0 |
800-1500 |
30meters, 50meters, |
Produce various specifications according to customers' requirements |
standard thickness : from 0.35 to 1.2 mm
standard width : 914 /1000/1200/1220mm
Finishes: Smooth, Stucco Embossed (Orange Peel), Mill finish, with polykraft paper.
Chemical Composition
|
Chemical Composition % |
|||||||||||||
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Ni |
Zn |
Ti |
Other |
Al |
||
|
each |
total |
||||||||||||
|
1050 |
0.25 |
0.40 |
0.05 |
0.05 |
0.05 |
- |
- |
0.05 |
0.03 |
0.03 |
- |
99.50 |
|
|
1060 |
0.25 |
0.35 |
0.05 |
0.03 |
0.03 |
- |
- |
0.05 |
0.03 |
0.03 |
- |
99.60 |
|
|
1100 |
Si +Fe:0.95 |
0.05-0.20 |
0.05 |
- |
- |
- |
0.03 |
- |
0.05 |
0.15 |
99.00 |
||
|
3003 |
0.60 |
0.70 |
0.05-0.20 |
1.0-1.5 |
- |
- |
- |
0.10 |
- |
0.05 |
0.15 |
Remain |
|
|
3004 |
0.30 |
0.70 |
0.25 |
1.0-1.5 |
1.8-1.3 |
- |
- |
0.25 |
- |
0.05 |
0.15 |
Remain |
|
|
3105 |
0.60 |
0.70 |
0.30 |
0.30-0.8 |
0.20-0.8 |
0.20 |
- |
0.40 |
0.10 |
0.05 |
0.15 |
Remain |
|
|
5052 |
0.25 |
0.40 |
0.10 |
0.10 |
2.2-2.8 |
0.15-0.35 |
- |
0.10 |
- |
0.05 |
0.15 |
Remain |
|
Application:
Use for Insulation Purpose, Heat Insulation, Thermal Insulation. Such as aluminum coils with heat-insulation of the pipelines in the power plant and chemical industry.
