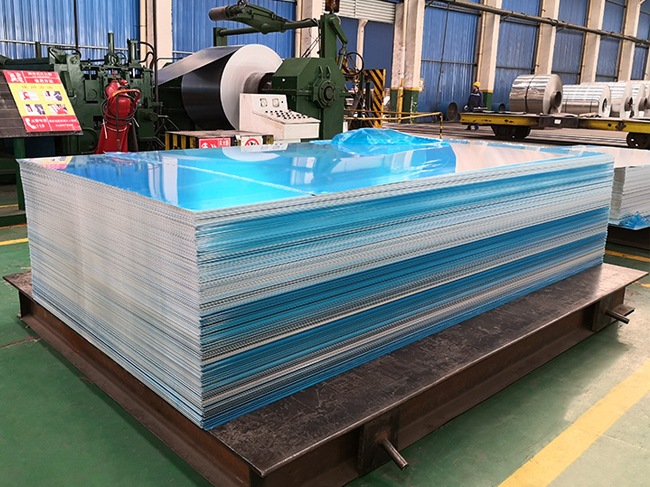

5182 aluminum sheet plate | haomei aluminium

Product introduction

5182 aluminum plate is Al-Mg rust-proof aluminum,performance of 5182 aluminum plate is similar to 5A02, but because the magnesium content is slightly higher than 5A02, and a small amount of silicon is added, the weldability is better than 5A02, and the 5182 aluminum plate is gas-welded and argon-arc. The welding performance of welding, spot welding and seam welding is very good, and there is no big difference in other performance.

What is Alloy 5182?

5182 is one of the strongest non-heat treatable aluminum alloys. It is nominally a 4.5% magnesium alloy and its strength is further increased by an addition of approximately 0.3% manganese. It is commonly used in automotive and general industrial applications where strength is important. United Aluminum can supply 5182 in a wide variety of tempers, from fully soft to extra hard, in a wide range of gauges and widths.

Specification

5182 H111 Aluminum Sheet Stock List

Alloy	Temper	Thickness	Width	Length	Weight (KG)	Piece
5182	H111	10	1600	6000	4380	17
5182	H111	10	1600	6000	4380	17
5182	H111	10	1600	6000	4380	17
5182	H111	10	1600	6000	1030	4

5182 O Aluminum Sheet Stock List

Alloy	Temper	Thickness	Width	Length	Weight (KG)	Piece
5182	O	5.5	1900	6600	4395	24
5182	O	5.5	1900	6600	4395	24
5182	O	5.5	1900	6600	4395	24
5182	O	10	1500	6000	2385	10
5182	O	5.5	2620	2650	4375	42
5182	O	5.5	2620	2650	4585	44
5182	O	5.5	2620	2650	4585	44
5182	O	5.5	2620	2650	1980	19
5182	O	5.5	2620	2650	4585	44
5182	O	5.5	2620	2650	3225	31
5182	O	5.5	2620	2650	4585	44
5182	O	8	2580	5160	4180	15
5182	O	8	2580	5160	4180	15
5182	O	8	2580	5160	1975	7
5182	O	5.5	2580	2880	4500	41
5182	O	5.5	2580	2880	4500	41
5182	O	5.5	2580	2880	2630	24

5182 Aluminum Strip Stock List

Alloy	Temper	Thickness	Width	Length	Weight (KG)	Piece
5182	H111	5.5	2520	C	16190	1
5182	H111	5.5	2520	C	15530	1
5182	O	6	2390	C	16940	1
5182	O	6	2390	C	16530	1
5182	H111	6	2200	C	16200	1

Chemical composition of 5182 aluminum sheet plate for oil tanker

Element	Composition %
Si	0.20
Fe	0.35
Cu	0.50
Mn	0.0-0.5
Mg	4.0-5.0
Cr	0.10
Ni	-
Zn	0.25
Ti	0.10
Al	Remainder

Mechanical properties of 5182 aluminum sheet plate for oil tanker

Temper	Thickness/mm	Tensile Strength /MPa	Specified non-proportional Tensile Strength/MPa	Elongation After Break/%	A50 mm	Bending Radius
H111	3.00-6.00	≥280	≥125	≥24	≥6600	1.0t
H111	>6.00-12.00	≥280	≥125	≥24	≥6600	2.0t
O	3.00-6.00	≥280	≥125	≥26	≥7280	1.0t
O	>6.00-12.00	≥280	≥125	≥26	≥7280	2.0t

Surface grade of 5182 aluminum sheet plate for oil tanker

Type	Standard Plate	High Class Plate	Bright Plate	Mirror Plate
Surface	★★★☆☆	★★★★☆	★★★★☆	★★★★★
Roughness Ra/μm	0.5-0.8	0.3-0.5	0.1-0.3	≤0.04
Product Description	Smooth surface Defect deepness ＜Minus Tolerances Of Thickness	Fine and smooth surface No or only very little colour aberration and chatters	Bright, fine and Smooth surface No colour aberration and chatters	Mirror reflective Surface Reflectance ≥86%
Applicable Standards	GB/T 3880	EN14286 ASTM B209 EN485 Customer special requirements	EN14286 ASTM B209 Customer special requirements	EN14286 ASTM B209 Customer special requirements
Application	Use directly or After brashing Tanker Body, Tanker Head Wall Partition, Resistance Plate	Use directly Tanker Body, Tanker Head Wall Partition, Resistance Plate	Use directly Tanker Body, Tanker Head	Use directly Tanker Body, Tanker Head

Permissible deviation of 5182 aluminum sheet plate for oil tanker

Thickness tolerances within the following width ranges
Thickness	≤1250	>1250-1600	>1600-2000	>2000-2600
3.00-3.50	+0.28	+0.28	+0.30	+0.40
>3.50-6.00	+0.32	+0.32	+0.40	+0.45
>6.00-8.00	+0.38	+0.45	+0.50	+0.60
>8.00-12.00	+0.45	+0.55	+0.65	+0.80
